CADCraft
An open-source CAD drafting app — reads/writes DXF with a command line, object snaps, dimensions and plotting.
Download with PC ClientFeatures

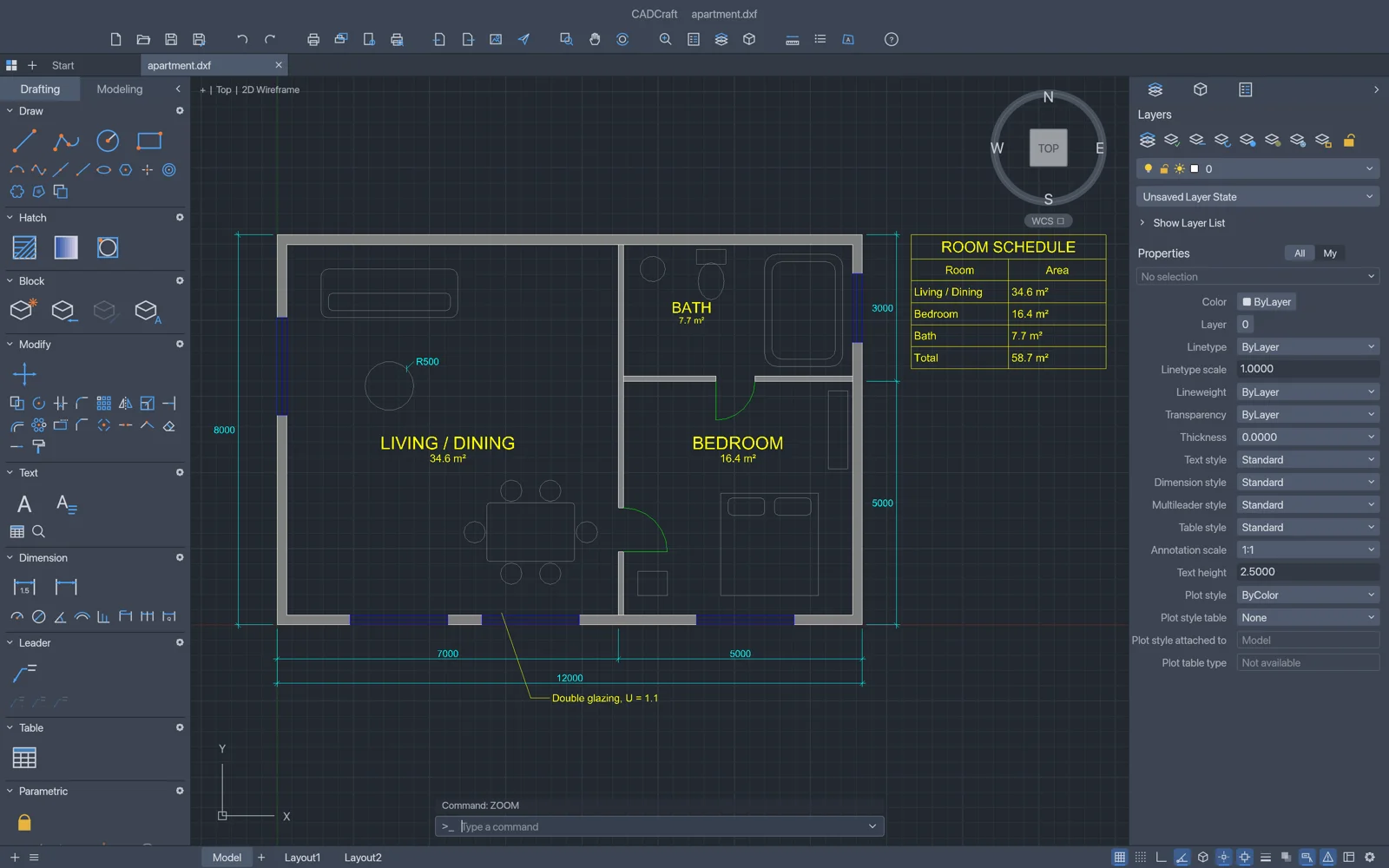

Screenshots
System Requirements
Minimum 4GB RAM. Low storage requirement (1GB reserved). macOS 15+: Supports both Intel and M-series chips. Windows 10/11 64-bit: No specific GPU requirements.
Introduction
Note: this page only catalogs third-party open-source projects and links to their official repositories; it neither develops, hosts nor distributes any software and assumes no liability. These are independent, open-source works written from the ground up, unaffiliated with and not authorized by any third-party commercial software or its maker; any third-party names, formats or trademarks are referenced for interoperability and description only.
CADCraft is a free, open-source computer-aided design and drafting (CAD) app, written from scratch in Rust with a familiar engineering-drafting workflow. Great for floor plans, part drawings and architectural/mechanical drafts.
What it lets you do:
- A familiar professional drafting flow: a command line, object snaps (auto-snap to endpoints/intersections/midpoints), layer management, dimensions, hatches and blocks.
- Read and write DXF drawings — the industry-standard format for exchanging drawings with other CAD tools.
- Model space plus layout plotting: paper-space viewports and page setups, export to PDF, with title blocks, section hatching and multiline text.
Product highlights:
- Native, pure Rust: light and cross-platform, no Windows dependency and no cloud required.
- Agent-drivable via MCP and CLI.
- Still in early development.
Team & tech: built by the community ArtCraft team (GitHub user storytold, site getartcraft.com); the Craft series is 100% pure Rust with an egui UI, an independent open-source work unaffiliated with any third-party commercial software.
Platforms: macOS, Windows, Linux, FreeBSD, and a browser (WebAssembly) build.
